After converting my old phone to run without a battery, I needed to find a use for it. Smart displays seem to be quite popular these days, so I thought I’d try and make one!
Tidying it up

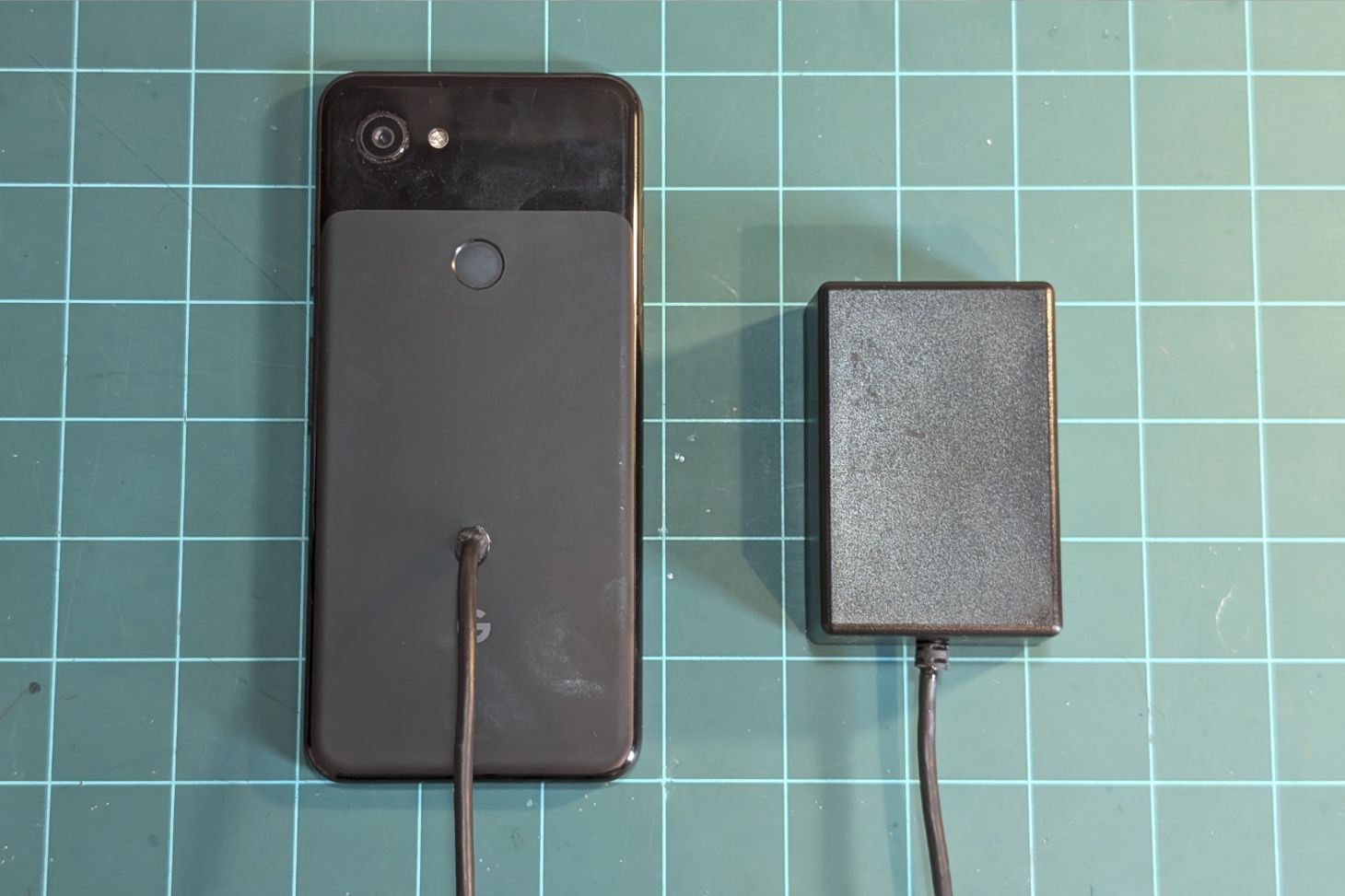

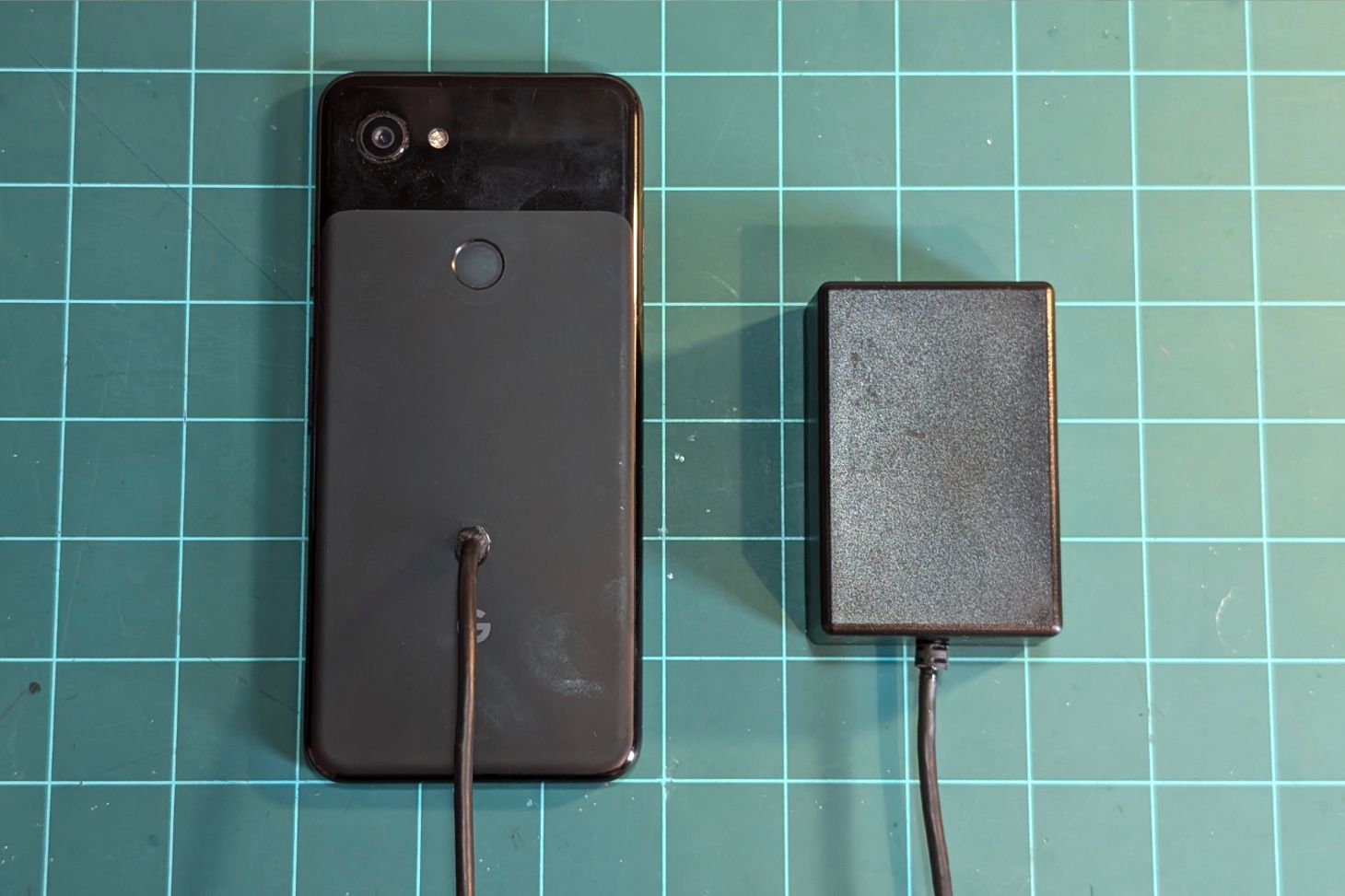

Before I could do anything, I needed turn my setup into something more permanent. I housed the buck converter and USB PD trigger board in a cheap plastic project box and fed the wires through a hole drilled through the back of the phone.
Being a budget phone, the back cover is plastic and there are no magnets or wireless charging coils in the way.
At this point I also added a Schottky diode to the output of the buck converter; that way I can still use the Pixel's USB port for data access without the worry of it attempting to charge the buck converter. A 1N5822 would be ideal, but as I only had a 1N5819 in stock I used that instead.
Optimising the software
I could put this to use straight away, but I wanted to turn my attention to the software. If this is going to be left running 24/7, I want it to draw as little power as possible. Phone's are already very power-efficient, but I could do without any of the apps and background services running that I no longer need.

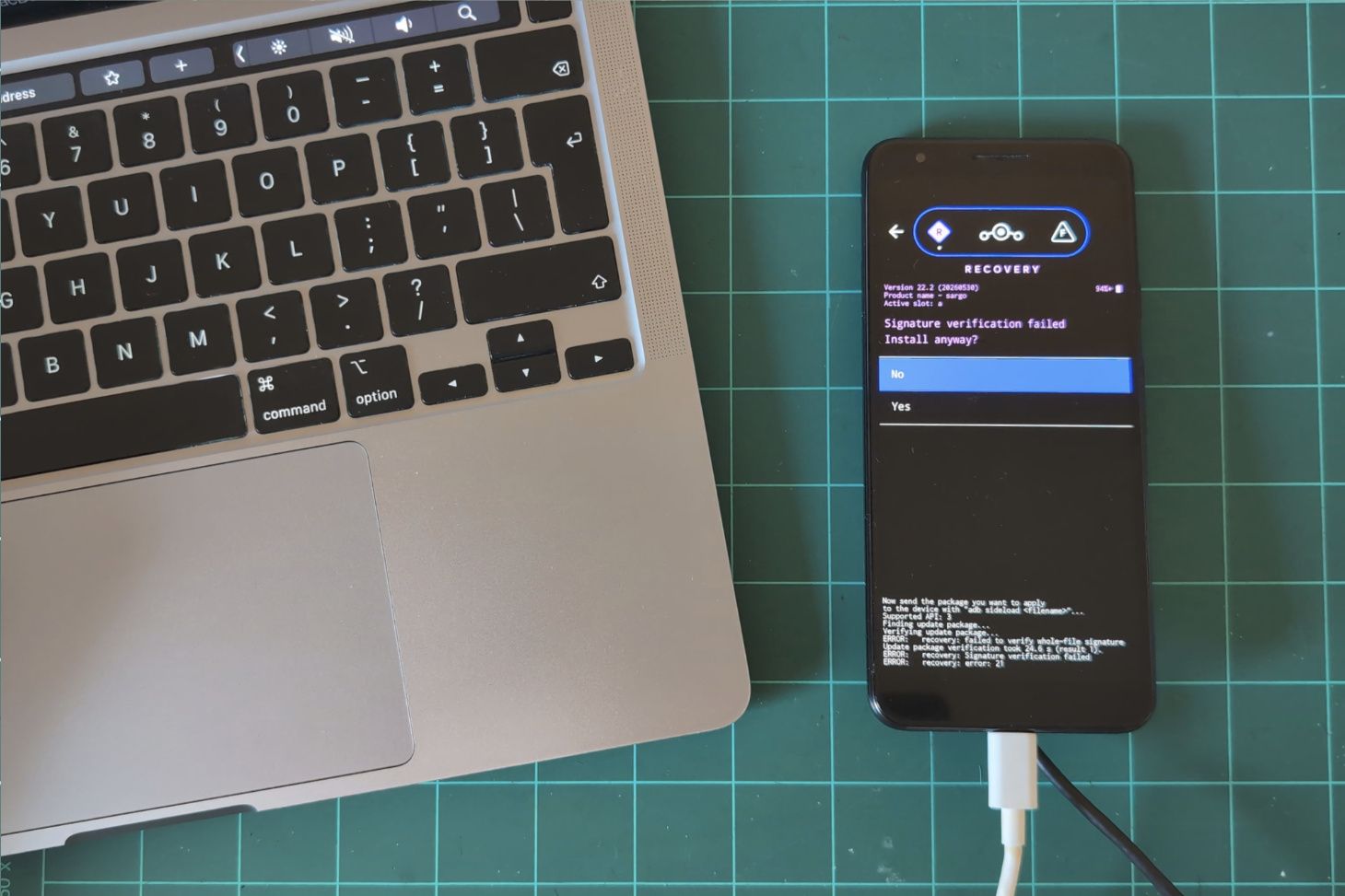

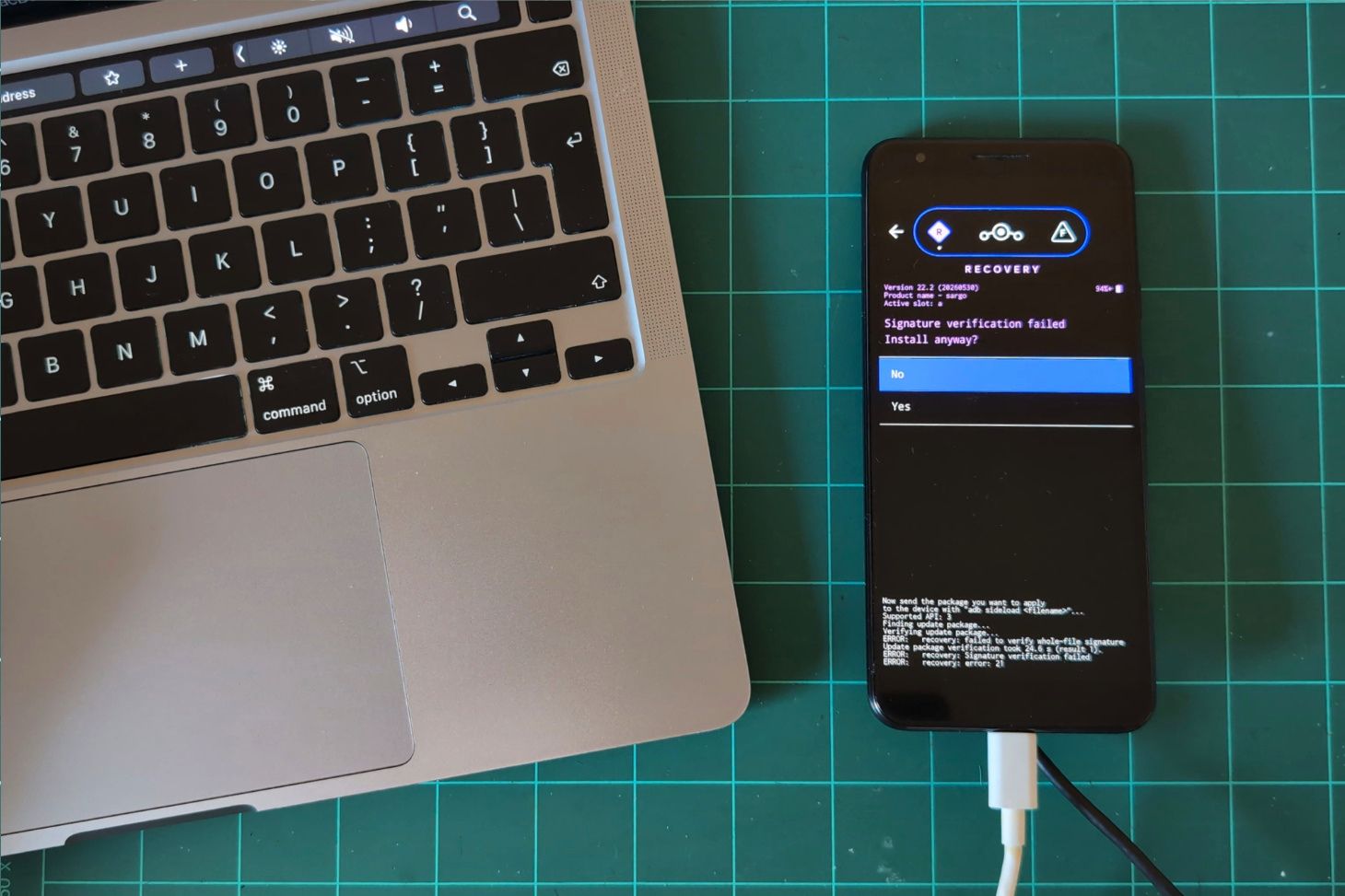

The easiest way to debloat my phone was to install a custom ROM. I went with LineageOS, which is designed to be clean and customisable. I also rooted the phone with Magisk, which will allow me to customise things further, should I need it.
Once installed I went through and disabled all of the apps and services I don't need. I also installed a firewall to block access to the internet by default, but allow something like a weather widget through should it need it.
I also disabled cosmetic things like the navigation bar and battery indicator too.
Wait, why is the battery level dropping?
Curiously, despite the voltage staying constant, Android gets a little confused and still reports the battery level dropping. Why is this, if this setup can power it indefinitely?
It seems the way Android calculates battery life is quite simple - it measures the rate of discharge and subtracts it from its pre-programmed battery capacity. It takes battery voltage into account when it boots up to get an initial reading, then either doesn't realise or doesn't care that it stays constant and doesn't tally up with its calculations.
In my experience it seems to drop to 1% and doesn’t cause the phone to shut down, but this may vary depending on the manufacturer.
Energy usage

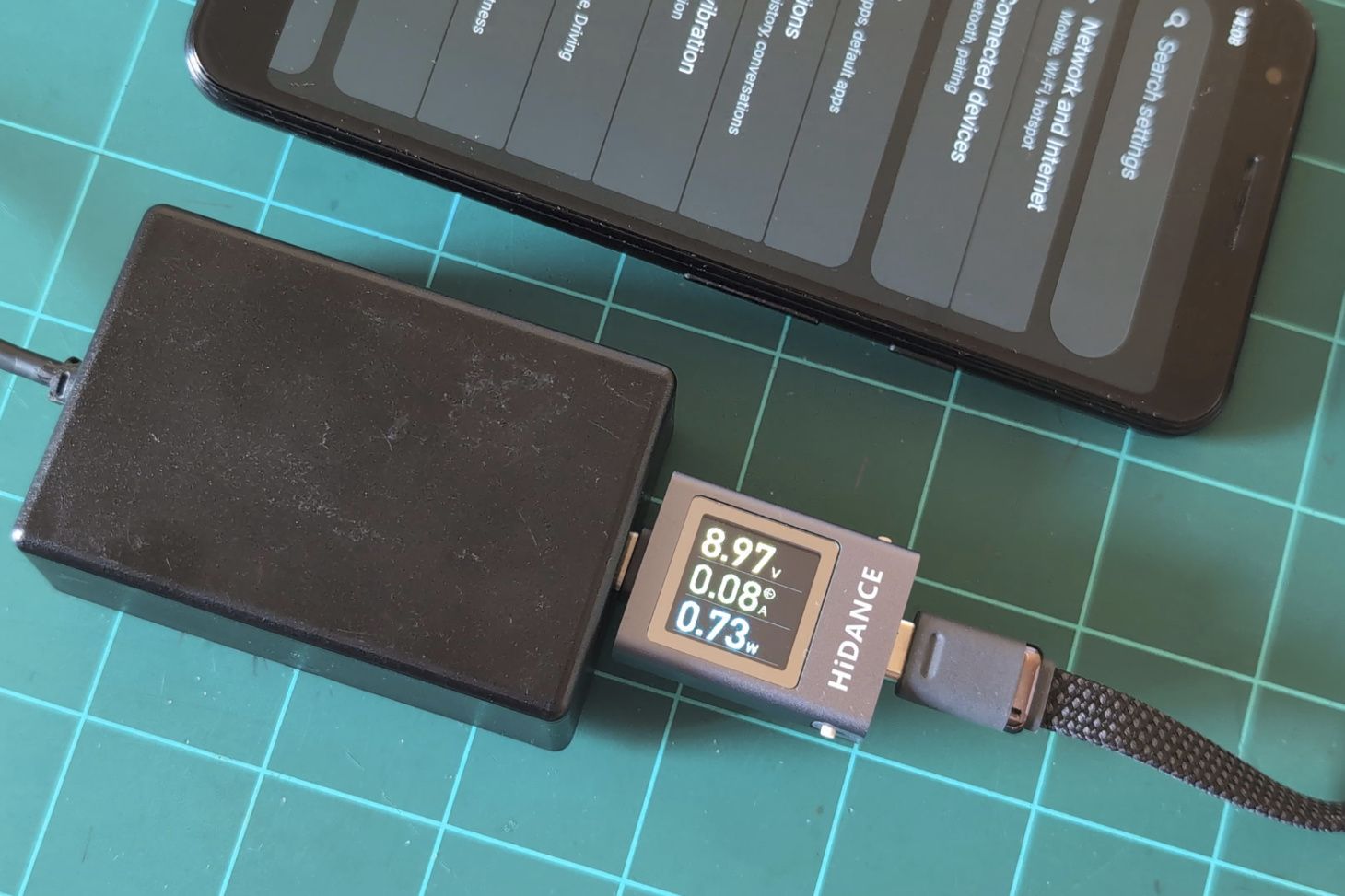

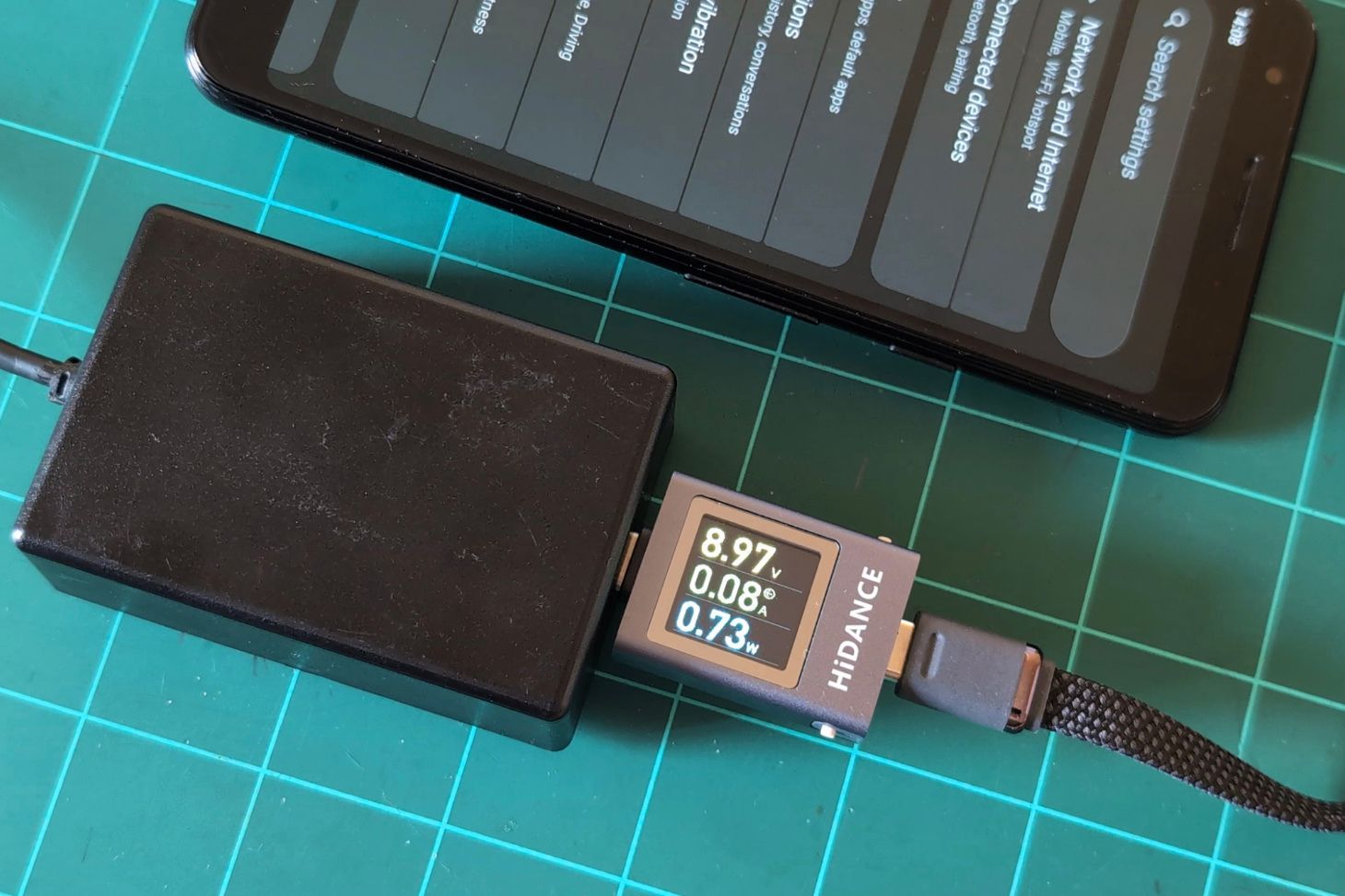

I was curious as to how much power this is drawing after my modifications, so I used a charger doctor to measure the current flowing. It jumps around a lot, but at 50% brightness it draws well under 1W at idle - not bad!
At current UK prices of electricity, this would cost a little over £2 a year to run if kept on 24/7.
Designing the setup
Now it’s ready to be put to use, I set about designing my setup. I took inspiration from the new-ish standby mode on iOS devices - I could put a lot of information on here, but I want something simple and readable at a glance.
I waded through a lot of junk on the Play Store, but in the end I used Nova Launcher, and this selection of widgets:
- Analog Scribble Clock Widget
- Event Flow Calendar Widget
- KWGT Kustom Widget Maker
- Today Weather: Radar & Alerts
Result

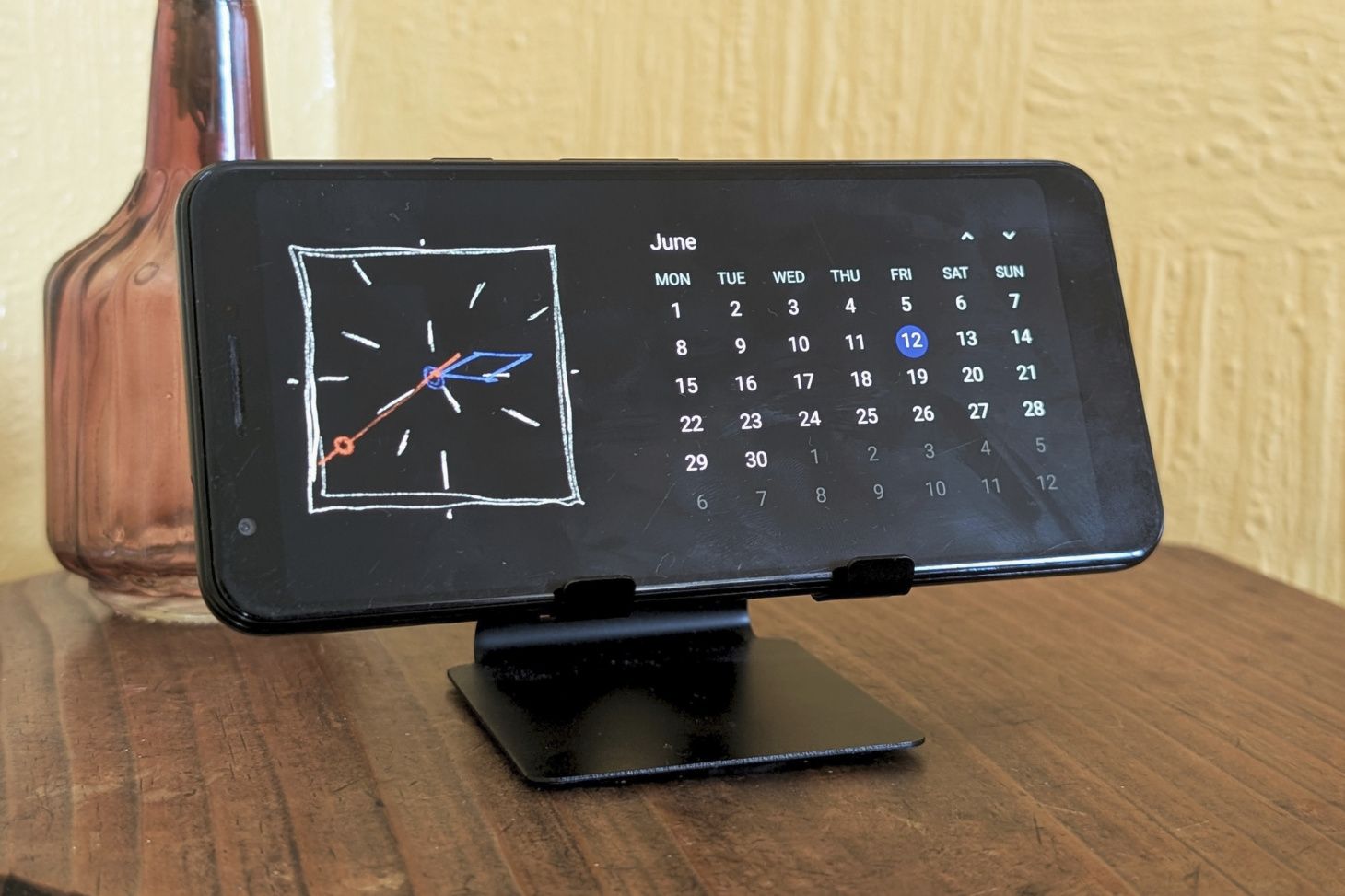

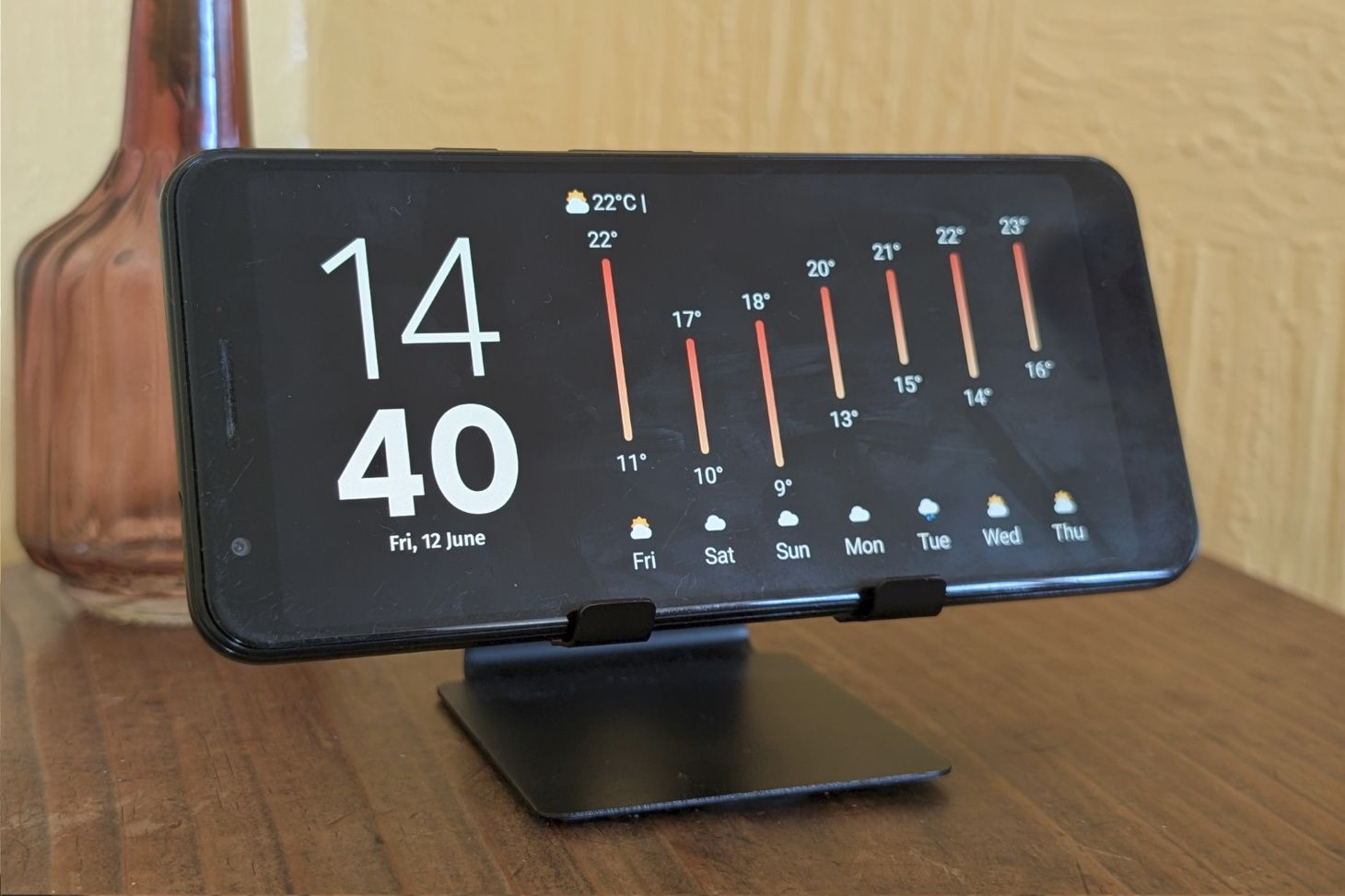

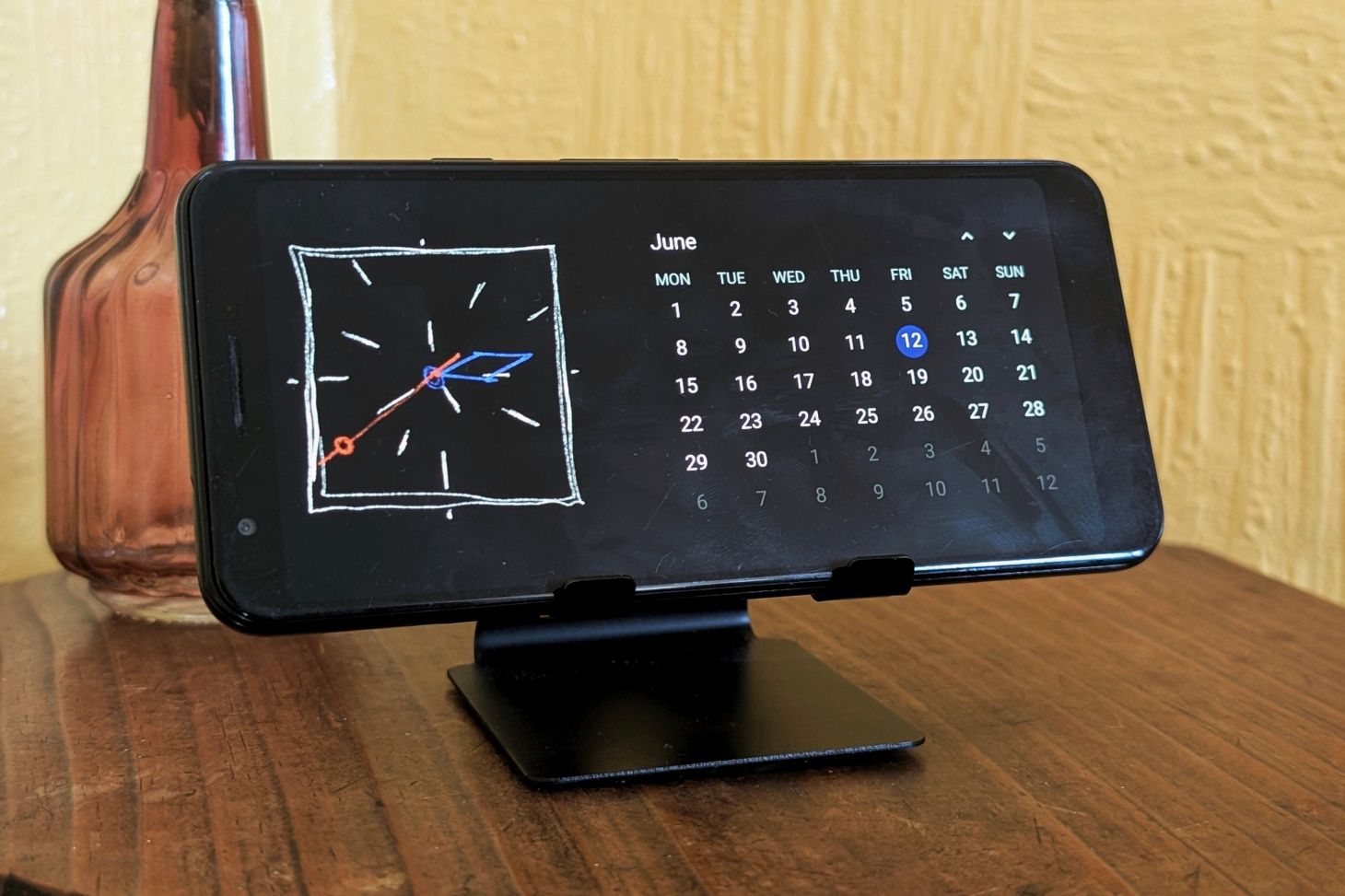

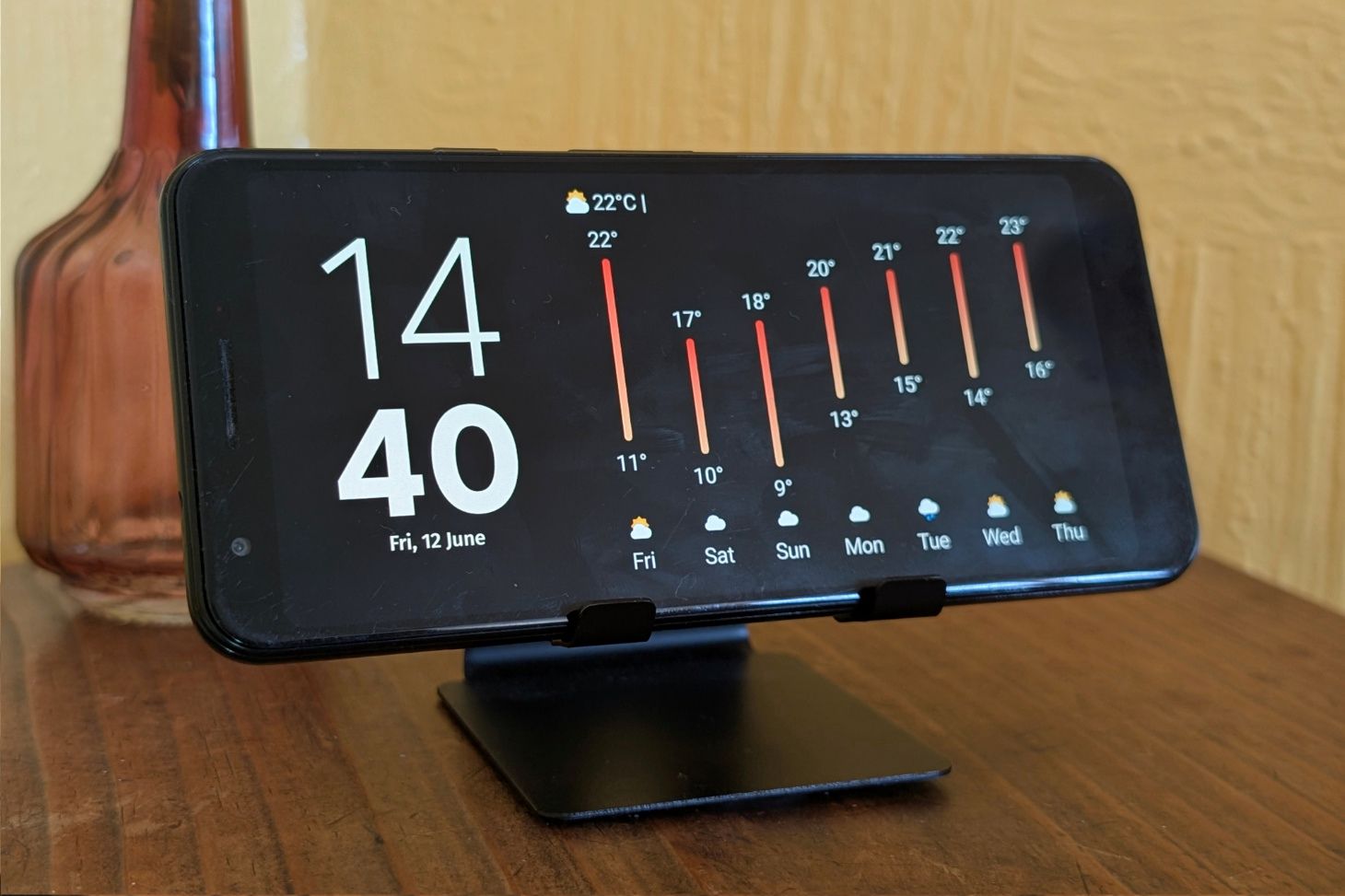

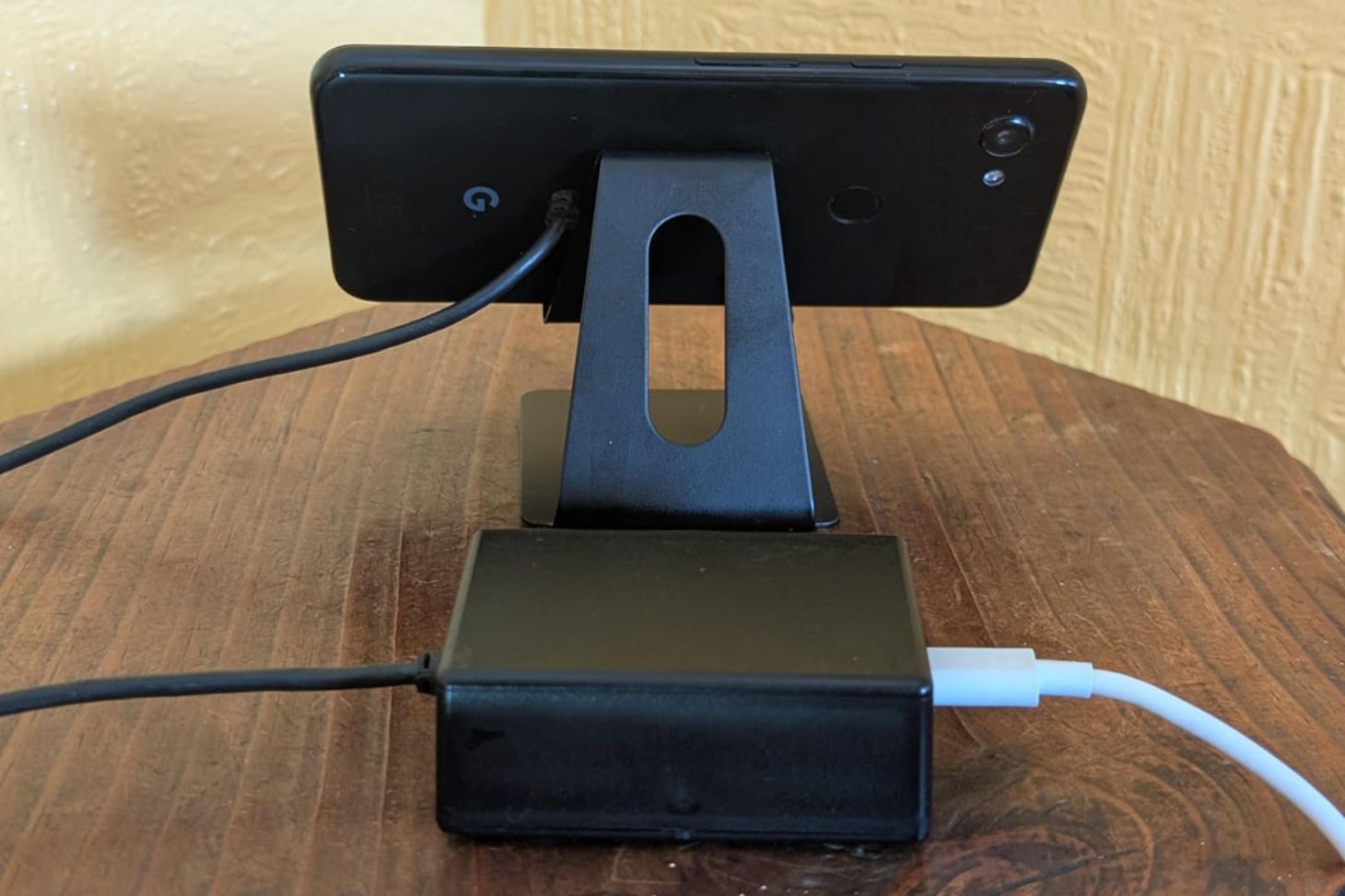

After some tweaking, I was quite happy with the result! Set on a stand from AliExpress, I think it looks quite nice, and I have a couple of designs to choose from.
I can still pick it up and use it as a timelapse camera, or any other idea that may come to me in the future.
